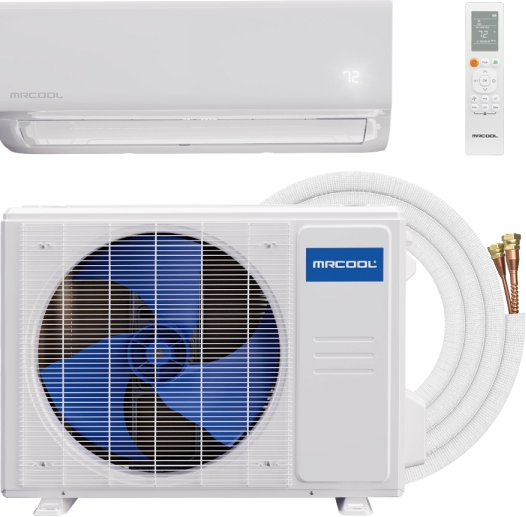

The MRCOOL DIY Select 24,000 BTU Single Zone Mini Split System is an excellent solution for homeowners who want powerful, energy-efficient heating and cooling without the cost and complexity of traditional HVAC installation. Designed to deliver dependable year-round comfort, this system is ideal for larger single-zone applications where reliable temperature control and installation flexibility are important.
Perfect for spaces up to 1,050 square feet, the DIY Select 24K is well-suited for garages, workshops, large home offices, master bedrooms, additions, finished basements, and open-concept living areas. Whether you're upgrading an existing space or adding comfort to a new one, this system provides the performance and convenience homeowners expect from MRCOOL.

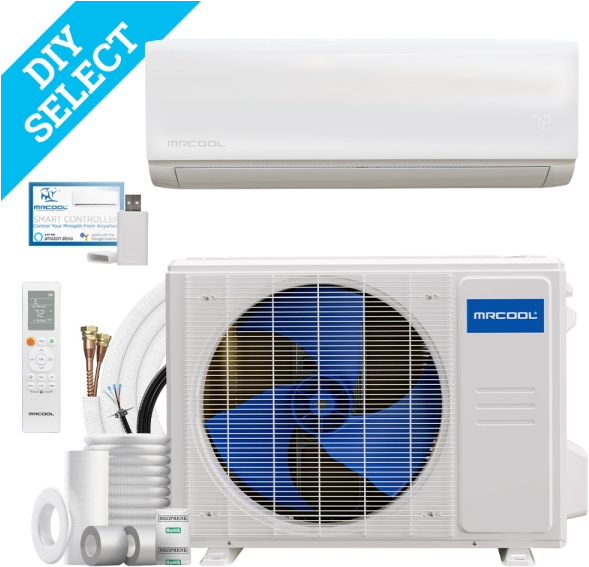

Equipped with an 11.5-foot pre-charged Quick Connect® line set, the DIY Select Series helps simplify installation while delivering the efficient heating and cooling performance of a high-quality heat pump system. Built with next-generation R-454B refrigerant and inverter technology, it provides consistent comfort while helping reduce energy consumption.
Why Homeowners Choose the MRCOOL DIY Select 24K
✅ Designed for spaces up to 1,050 sq. ft.
✅ DIY-friendly installation with included pre-charged Quick Connect® line set
✅ Efficient 16.5 SEER2 performance
✅ Reliable heating and cooling from a single system
✅ Ideal for larger individual rooms and open living spaces
✅ Built-in Wi-Fi connectivity for convenient control
✅ Compatible with the SmartHVAC app, Apple iOS, and Android devices
✅ Uses environmentally friendly R-454B refrigerant
Ideal Applications
The MRCOOL DIY Select 24K is commonly used in:
- Large bedrooms
- Open-concept living areas
- Home offices
- Garages and workshops
- Finished basements
- Room additions
- Detached buildings
- Small apartments and guest houses
Buy With Confidence from Skyway AC Sales
When you purchase from Skyway AC Sales, you're getting more than just HVAC equipment. You're getting support from a company backed by real-world HVAC experience. As a Florida Licensed HVAC Contractor, David and the Skyway AC Sales team are committed to helping homeowners find the right heating and cooling solution for their needs.
Coverage estimates are based on average conditions and may vary depending on insulation, ceiling height, windows, climate zone, and other factors. Contact Skyway AC Sales for personalized sizing assistance before ordering to ensure the best fit for your application.
Specifications
| Capacity & Performance |
| Zone Capacity |
1 |
| Cooling Capacity |
23,000 BTU |
| SEER2 |
16.5 |
| EER2 |
8.6 |
| Outdoor Operating Temperature (Cooling) |
-13 to 122℉ |
| Heating Capacity |
23,000 BTU |
| HSPF2-4 |
8.3 |
| HSPF2-5 |
6.3 |
| Outdoor Operating Temperature (Heating) |
-13 to 75℉ |
| Coverage Area |
Up to 1,050 sq ft. |
| Outdoor Noise Level |
61 dB(A) |
| Indoor Noise Level (Turbo/Hi/Med/Low/Sl) |
51.5 / 45.5 / 40.5 / 26.5 / 21.5 dB(A) |
| Dimensions & Weight |
| Condenser Dimensions |
35.04 W" x 13.46 D" x 26.5 H" |
| Air Handler Dimensions |
42.6 W" x 9.21 D" x 13.27 H" |
| Condenser Weight |
95.9 lbs |
| Air Handler Weight |
35.49 lbs |
| Electrical Requirements |
| Voltage |
208/230V |
| Phase |
1 |
| Cycle |
60Hz |
| Min Circuit Ampacity |
19A |
| Max Fuse Breaker |
20A |
| Refrigerant & Piping |
| Line Set Length |
11.5 ft. |
| Refrigerant Type |
R-454B |
| Refrigerant Volume |
50.44oz |
| Liquid Line Size |
3/8" |
| Suction Line Size |
5/8" |
| Max Line Set Length |
75 ft. |
| Features |
| Inverter Technology |
Yes |
| Wifi Compatibility |
Yes |
| App Compatibility |
Yes |
| Works with IOS |
Yes |
| Works with Android |
Yes |
| Remote Control Included |
Yes |
| Certifications & Warranty |
| Warranty |
2 Years Compressor
1 Years Parts |
